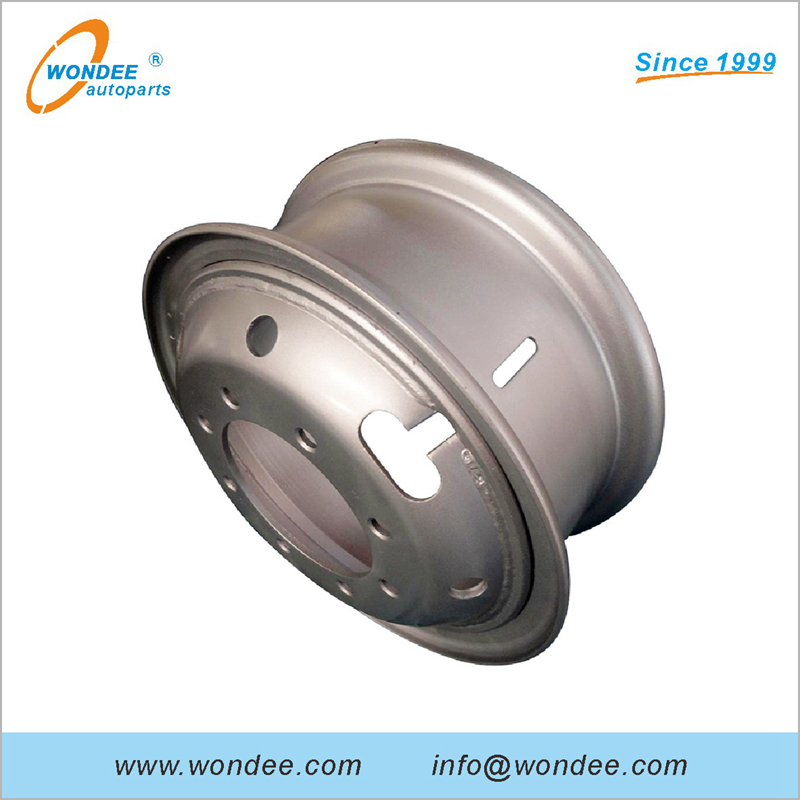

7.50V-20 Tube Steel Wheel Rim for Heavy Duty Semi Trailers and Truck Parts

20+ years of experiences (since 1999)
Implementing IATF 16949-2016
Implementing ISO 9001-2015
Quality standards: GB/T 5909-2009
Certifications: TUV,DOT,INMETRO
Dynamic Radial Fatigue: >1,000,000 Revolutions without visible cracks
Dynamic Bending Fatigue: >300,000 Revolutions without visible cracks
Available in More Sizes: 600,000+
Features: Less weight, high strength,low maintenance, good looks
Availability:

Product Description

Application of wheel rim

The wheel is an important part of the vehicle's driving system, which plays the role of bearing the weight of the car body and transmitting the driving force of the engine. Wheels can be divided into aluminum alloy wheel rims and steel wheel rims according to their manufacturing materials.


Steel wheel rims are made with an alloy of iron and carbon. They are heavier but they're more durable and can be easier to repair and refinish. Because of the way they're made-cut out on a press and welded together-they don't offer all the aesthetic spoke choices of other wheel types.

Features

QC management systemImplementing IATF16949-2016
Services quality management systemImplementing ISO9001-2015
Product technical standardsImplementing GB/T 5909-2009
Warranty14 months since ship date
Quality testing byDynamic radial fatigue testing machine, Dynamic Bending Fatigue testing machins, Wheel dynamic balance testing machine,etc
Raw materialFrom top steel mills, high strength
Disc/Rim designAccording to the force characteristics, make strengthen on vulnerable positions include rim groove side, the junction of the rim and dis etc, adopt less weight design  for the places where the force is small, to guarantee less weight while so withstand the rated load, to increase fuel efficiency
ProductionThrough newly modernized facilities and computerized robotic production system, make rims less weight, high strength,low maintenance
PaintingE-coating finish line: paint film is uniform and plump, with strong adhesion and high anti-corrosion performance, to avoid dripping, flow marks, stagnation marks and other problems.
Mark/Sticker* Clients' logo are supported
Other inspection equipmentWheel force transducer,
Oversea sales volume (pcs)600,000+
Overseas market30+ countries (Thailand, Vietnam, Malaysia, Singapore, The Philippines, Indonesia, Canada, Mexico, Brazil, Bolivia, Argentina, Ecualor, Chile, Peru, Guatemala, Panama, Egypt, South Africa, Nigeria, Tanzania, Russia, France, German, Poland, etc.)
Clients (overseas)32+
Land area (square meters )22,050+
Pcs of annual output600,000+
Number of equipments (sets)200+
Number of employees140+
Number of engineers10+
Available certificatesTUV,DOT,INMETRO

Comprehensive Info of Wheel Rims:

Wheel rim typesTubeless wheel rims, Tube wheel rims, Decoumentable rims, Aluminum wheel rims, Rings
Sizes17.5x6.00  17.5x6.75
19.5x6.00 19.5x6.75 19.5x8.25 19.5x14.00
22.5x7.5 22.5x8.25 22.5x9.00 22.5x11.75
24.5x8.25
Disc thickness option (mm)11mm, 13mm, 14mm, 16mm
Rim thickness option (mm)5mm, 6mm, 7mm, 8mm
ColorsSliver, while, red, black, blue, as requirement.
Optional parts & componentsValve
PackageFumigated wooden pallets, as requirement
Standards implementedIATF 16949, ISO9001-2015,
PaymentTT, LC, DP
Lead timeAbout 20~30 working days
MOQ1 pcs


Parameters

steel wheel rim (1)


WONDEE Tube Steel Wheel Rim Series:

ITEM   NO. SIZE Bolt P.C.D. C.B.D. Offset
No. Dia. Type (mm) (mm) (mm)
5.50F-15






WRS550150-108 5.50F-15 5 29 SR22 203.2 146 108
WRS550150-114 5.50F-15 6 25.5 E 184.15 133 40
5.50F-16






WRS550160-101 5.50F-16 5 29 A 203.2 146 115
WRS550160-103 5.50F-16 6 17.5 E 170 133 25
WRS550160-116 5.50F-16 5 32.5 SR22 203.2 135 135
6.00G-16






WRS600160-101 6.00G-16 5 32.5 SR22 203.2 133 20
WRS600160-108 6.00G-16 5 32.5 SR22 208 150 127
WRS600160-105 6.00G-16 6 20.5 SR22 190 140 -20
6.50-20






WRS650200-101 6.5-20 6 32.5 SR22 222.25 164 135
WRS650200-103 6.5-20 8 32.5 SR22 275 214 145
WRS650200-107 6.5-20 8 27 SR18 275 221 143
7.00T-20






WRS700200-102 7.00T-20 8 32.5 SR22 285 222 162
WRS700200-107 7.00T-20 10 26 ISO 335 281 162
WRS700200-108 7.00T-20 10 27 SR18 335 281 162
7.50V-20






WRS750200-101 7.50V-20 8 32.5 SR22 285 222 165
WRS750200-107 7.50V-20 10 26 ISO 335 281 165
WRS750200-106 7.50V-20 10 27 SR18 335 281 165
8.00V-20






WRS800200-102 8.00V-20 8 32.5 SR22 285 222 175
WRS800200-105 8.00V-20 10 26 ISO 335 281 175
WRS800200-106 8.00V-20 10 27 SR18 335 281 175
8.5-20






WRS850200-108 8.5-20 8 32.5 SR22 285 222 175
WRS850200-106 8.5-20 10 26 ISO 335 281 175
WRS850200-107 8.5-20 10 27 SR18 335 281 175
8.5-24






WRS850240-102 8.5-24 10 26 ISO 335 281 180
WRS850240-101 8.5-24 10 27 SR18 335 281 180


steel wheel rim (2)

WONDEE Tubeless Steel Wheel Rim Series:

ITEM   NO. SIZE Bolt P.C.D. C.B.D. Offset
No. Dia. Type (mm) (mm) (mm)
6.00x17.5






WRS600175-201 6.00 x 17.5 6 32 SR22 222.25 164 135
WRS600175-202 6.00 x 17.5 10 26 SR18 225 176 133
6.75x17.5






WRS675175-202 6.75 x 17.5 6 32 SR22 222.25 164 137
WRS675175-204 6.75 x 17.5 8 26 0.5X45 275 221 139
6.75x19.5






WRS675195-201 6.75 x 19.5 6 32 SR22 222.25 164 135
WRS675195-204 6.75 x 19.5 6 32.5 SR22 222.25 164 157
WRS675195-203 6.75 x 19.5 8 32 SR22 275 214 139
6.75x22.5






WRS675225-202 6.75 x 22.5 6 32 SR22 222.25 164 151
WRS675225-209 6.75 x 22.5 8 32.5 SR22 285 221 174
WRS675225-206 6.7 x 22.5 10 26 ISO 285.75 220 152
WRS675225-211 6.75 x 22.5 10 26 ISO 335 281 177
7.50x22.5






WRS750225-209 7.50 x 22.5 8 32.5 SR22 285 221 162
WRS750225-203 7.50 x 22.5 10 26 ISO 335 281 165
8.25x22.5






WRS825225-217 8.25 x 22.5 8 32.5 SR22 285 221 165
WRS825225-207 8.25 x 22.5 10 26 ISO 335 281 165
WRS825225-231 8.25 x 22.5 10 27 SR18 335 281 165
9.00x22.5






WRS900225-203 9.00 x 22.5 10 26 ISO 335 281 161
WRS900225-220 9.00 x 22.5 10 26 ISO 335 281 175
WRS900225-222 9.00 x 22.5 10 27 SR18 335 281 175
11.75x22.5






WRS1175225-204 11.75 x 22.5 10 26 ISO 335 281 120
WRS1175225-205 11.75 x 22.5 10 26 ISO 335 281 70
WRS1175225-207 11.75 x 22.5 10 27 SR18 335 281 120
WRS1175225-208 11.75 x 22.5 10 27 SR18 335 281 70
WRS1175225-209 11.75 x 22.5 10 27 SR18 335 281 0


Production

WONDEE tube wheel rimWONDEE tubeless wheel rim

The types of steel rims mainly include tube steel wheel rims and tubeless steel wheel rims, which are suitable for light and heavy duty trailers and trucks, buses and other vehicles.


Tube steel wheel rims , using professional rim profiles, are generally used with inner tubes and solid tires. The wheel is processed by assembly line operation, rounding, matching, double cutting, butt welding, expansion, contraction and other processes. The wheel has the characteristics of high strength and strong versatility.

Tubeless steel wheel rims are made of high-quality steel, welded by flash butt welding, and three rolling processes. The whole wheel is completely processed by molds and manufactured by assembly line operations. It has the characteristics of high strength, light weight, good dynamic balance and stable performance.


WONDEE tube wheel rim2WONDEE tubeless wheel rim2WONDEE wheel rim painting lineWONDEE wheel rim production line

Production Process of Steel wheel rim :


Rim: Material cutting –Edge Rolling –Full Rolling–Double Cutting–Hole Verifying – Manual Welding –Polishing –Cinder Cleaning–Expansion–Contraction–Air Hole Punching –Lathe Rim


Disc: Cutting –Moulding–Center Hole Punching –Wind Hole Punching–Broaching–Lathing–Air Hole Punching–Grinding


Assembling: Disk Installing–Inspection–Automated Welding –Pickling & Phosphating –Painting (E-coating + normal painting) –Inspection–Assembling–Warehousing


Packing

 WONDEE wheel rim packing and warehousing

Besides steel wheel rims, WONDEE also Supply different types of semi trailer components as below:
