LEAF SPRING

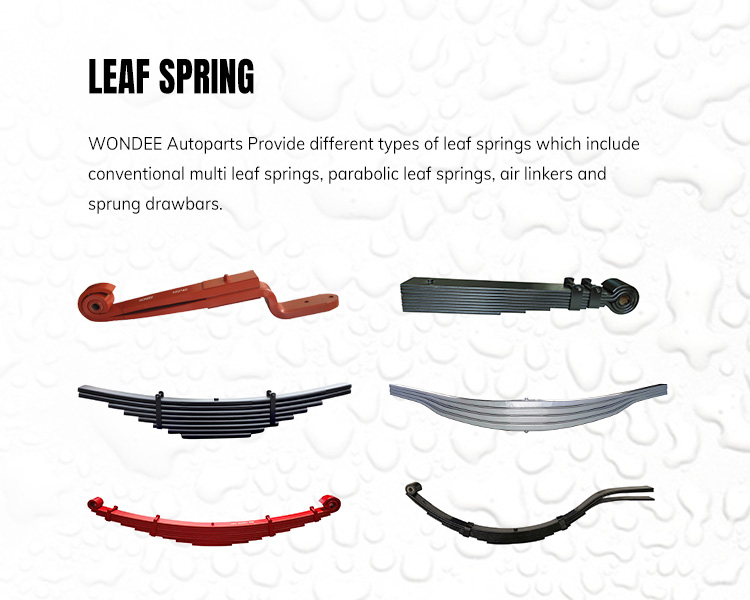

WONDEE Autoparts Provide different types of leaf springs which include conventional multi leaf springs, parabolic leaf springs, air linkers and sprung drawbars.

In terms of vehicle types, it include heavy duty semi trailer leaf springs, truck leaf springs, light duty trailer leaf springs, buses and agricultural leaf springs.

VIEW MORE >
Home / LEAF SPRINGS / Leaf Spring
Leaf Spring
More than 20+ years of experience, WONDEE Leaf spring has formed complete facilities, professional team and strict QC management, making it one of the top 5 leaf spring companies in China with an annual production capacity of 35,000 tons.

With more than 100 sets of main equipment, including automated tapering machines, automated eye rolling machines, four-station heavy presses, robot-assisted automatic quenching equipment, etc. And 12 production lines , including 2 fully automatic material cutting lines, 2 fully automatic tapering lines, 3 quenching line, 2 automatic painting lines and 3 automatic assembly lines.
Wondee Leaf spring is designed according to the advanced production process flow, strictly implements ISO/TS16949 QC system and GB/T 19844-2005.

Leaf thickness from 6 mm to 59 mm, and width from 44.5 mm to 140 mm.
Material grade: SUP7, SUP9, SUP9A, SUP11A, 60Si2Mn, 55Cr3, 50CrVA, 51CrV4, and 52CrMoV4, etc.
Featured Leaf Spring
2

Coventional Multi-leaf Springs

Conventional Multi-leaf Leaf springs are often used in heavy duty vehicles. They are composed of multiple spring leaves with different lengths and the same width. Generally, there are more than 5 springs. The length of the leaf spring becomes shorter from top to bottom, and the spring leaf at the bottom is the shortest. The greater the number and thickness of spring leaves, the higher the rigidity of leaf springs and their loading capacity.
2-1

Parabolic Leaf Springs

Parabolic leaf springs: It is composed of spring leaves with thin ends, thick middle, equal width and length. The section thickness of the spring leaf changes greatly, and the section thickness from the middle to both ends changes gradually, so the rolling process is more complex. Compared with conventional multi leaf springs, under the condition of the same stiffness (i.e. the same loading capacity), the weight of parabolic leaf springs is about 50% lighter than that of multi leaf springs, which reduces fuel consumption and increases ride comfort.
2-2

Air Linker Springs

The Air Linker is mainly applicable to the automobile air suspension. It is usually composed of one or two spring leaves, which are used symmetrically with left and right. It is installed between the axle and the air suspension bracket. It is formed as a whole, and its structure includes a straight part, a bending part and a eye rolling part. The rolled eye is equipped with a rubber composite bushing. The common material specifications of the guide arm are from 90 to 100 mm in width and from 20 to 50 mm in thickness
Why use for Leaf Spring
The advantages of plate spring are simple structure, reliable operation, low cost and convenient maintenance. It is both an elastic element of the suspension and a guiding device of the suspension.

One end of it is hinged with the frame, which can transmit various forces and moments and determine the wheel runout trajectory. At the same time, it also has a certain friction damping effect. Kill three birds with one stone, so it is widely used in dependent suspension.
3-1
3-2
3
3-3
What Does A Leaf Spring Do?

What is the function of leaf spring

The function of the leaf spring is to connect the frame and the axle by mechanical suspension. The leaf spring between the frame and the axle bears the impact of the wheel load on the frame, reduces the violent vibration of the body, and maintains the stability of the vehicle and its adaptability to different road conditions.
  • Reverse Suspension
  • Air Suspension
  • Double Point Suspension
  • Small Trailer Suspension

Advantages of leaf spring mechanical suspension

It is also called tandem leaf spring balanced suspension, which is a common leaf spring suspension. It is mainly composed of leaf spring, suspension support, connecting rod, U-bolt, etc.

The most advantages of this leaf spring type trailer suspension are low cost, reliable operation and convenient maintenance. Because of this, leaf spring suspension is currently used in the largest proportion of container semi-trailer, about 70-80%.
Two types of leaf springs：

Multi leaf springs

It is composed of several spring leaves with different lengths and the same width. The spring leaves of the multi leaf spring are superposed into an inverted triangle shape. The leaf at the top is the longest and the leaf at the bottom is the shortest. The number of steel plates is related to the weight of the vehicles. The greater the number of leaf springs, the thicker the thickness, and the shorter the length, the greater the rigidity of the spring. However, when the leaf spring is used for a long time, the plates will slide and rub against each other to make noise. The relative friction between spring leaves will also cause spring deformation, resulting in uneven driving.

Parabolic leaf spring

It is composed of spring leaves with thin ends, thick middle and equal width and length. The section of a parabolic leaf springs changes greatly, and the section from the middle to the two ends is gradually different. Therefore, the rolling process is more complex and the price is more expensive than that of a multi leaf spring. Compared with the multi leaf spring, the parabolic leaf spring is about 50% lighter than the multi leaf spring under the same stiffness (i.e., the same load capacity), reducing fuel consumption and increasing ride comfort. Moreover, there is a point contact between the parabolic spring leaves, which reduces the relative friction and vibration and increases the ride comfort.
Leaf Spring Video

Automatic cutting and punching process of spring flat bar

The cutting and punching process of spring steel flat bar can be completed at one time through the CNC integrated machine.

Rolling process of leaf springs

After being heated, the leaf spring is rolled by a special rolling mill to make the thickness of the leaf spring gradually thinner from the center to both ends.

Quenching process of leaf springs

After heating, the leaf spring is formed by forming fixture and quenched and cooled in special quenching oil.
Projects
    FAQ

    • Q Which vehicle types our leaf spring are applicable? for?

      A
      American truck, BENZ, BPW, VOLVO, HYUNDI, Trailer, HINO, ISUZU, MITSUBISHI, NISSAN, TOYOTA, Semi Trailers, etc.

    • Q What materials of the leaf springs?

      A
      The materials of leaf spring, including SUP7, SUP9, 51CrV4, the customer can select the suitable material for orders.

    • Q What’s the lead time for leaf spring order?

      A
      Within 15-20 working days after confirmed the order and received the deposit.

    • Q If accept OEM service to made product as per customer offering drawing?

      A
      Yes, we can offer OEM service. Produce the leaf spring according to the buyer's offering drawing.

    • Q Whether the customer's own LOGO and label can be printed on the leaf spring

      A
      Yes, it is available, the customer's LOGO and label can be printed on the leaf springs.

    • Q Whether the sample of leaf spring can be provided as the quality?

      A
      Yes , the leaf spring sample is available, certainly the transportation cost will be on customer’s account.

    • Q What's the quality warranty about leaf spring?

      A
      For leaf springs , we offer 12 months quality warranty since shipping day.
    Related Product News
    Effect of increasing or decreasing the number of spring leaves.jpg
    2022-01-06
    The Effect of Increasing or Decreasing the Number of Spring Leaves on Stiffness and Service Life of Leaf Spring Assembly
    View More
    2022-01-06
    The Effect of Increasing or Decreasing the Number of Spring Leaves on Stiffness and Service Life of Leaf Spring Assembly

    A leaf spring is the most widely used elastic element in automobile suspension. It is an elastic beam with approximately equal strength composed of several alloy spring leaves sheets of equal width and unequal length. It bears the vertical force caused by the dead weight and load of the vehicle and

    View More
    How to measure a leaf spring.jpg
    2021-12-29
    How to Measure A Leaf Spring?
    View More
    2021-12-29
    How to Measure A Leaf Spring?

    1. Main parameters of leaf springsAs shown in Figure 1 below. The main parameters of leaf springs are: (Figure 1. Main parameters of leaf springs)2. Main processing technology of leaf spring ends As shown in Figure 2 below. The end processing technologies of leaf springs mainly includes the followin

    View More
    Classification of Leaf Springs.jpg
    2021-09-14
    Classification of Automobile Leaf Springs
    View More
    2021-09-14
    Classification of Automobile Leaf Springs

    A leaf spring is the most widely used elastic element of automobile suspensions. It is an approximate equal strength steel beam composed of several alloy spring sheets of equal width and unequal length. There are many kinds of leaf springs, which can be classified according to the following classifi

    View More
