Introductions of semi-trailers ABS system (Part 1)

Views: 0     Author: Wondee Autoparts     Publish Time: 2022-05-18      Origin: Wondee Autoparts

Introductions of semi-trailers ABS system (Part 1)

-introductions, advantages, compositions and standards


1. Brief introductions of the ABS system


A semi trailer ABS (Anti-lock braking system) is an electronic control system that monitors and controls the speed of the vehicle during braking. Its task is to prevent wheel locked caused by excessive braking force of the vehicle (especially on slippery roads), and ensure the driving stability, steering control of the vehicle and the best effect of braking coordination of the tractor and semi-trailer. At the same time, the available braking friction between the tire and the road surface and the optimization of the vehicle deceleration and braking distance are ensured. The ABS works through the conventional braking system, which can improve the active safety of the vehicle.


2. Advantages of the ABS system

The advantages of installing ABS system on the vehicles mainly include:


1) During emergency braking, the operability of vehicle direction is maintained;


2) The braking distance of the vehicle is shortened and optimized. On the low adhesion road, the braking distance is shortened by more than 10%; on the normal road, the optimal utilization rate of road adhesion coefficient (i.e. the optimal braking distance) is maintained.


3) It reduces traffic accidents.


4) It reduces the mental burden of drivers.


5) It reduces tire wear and maintenance costs.



3. Compositions of the ABS system


The ABS is a system composed of many components. Its main components are as below:


1) Electronic control unit (ECU)


As shown in Figure 1 below, it is the core component of ABS, which is composed of high-performance single chip and integrated circuit, embedded with optimized high-level language algorithm and logic. It controls the brake pressure regulator according to the signal processing of the wheel speed sensor, then controls the braking torque of the corresponding wheel, and finally completes the control function of vehicle anti-lock braking.

ECU

ECU of the ABS system

(Figure 1. ECU of the ABS system )


2) Brake pressure regulator (solenoid valve)


As shown in figure 2 below, when ABS works, it regulates the pressure of wheel brake cylinder.

电磁阀


ABS solenoid valves

(Figure 2. ABS solenoid valve)

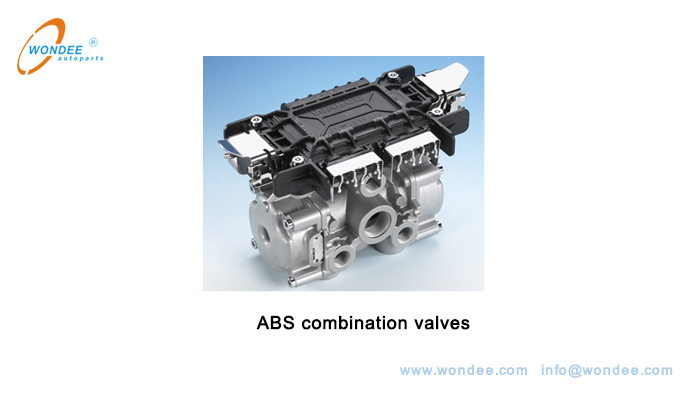

As shown in Figure 3 below, There are also integrated valves on the market, which are composed of electronic control units and active pressure regulators.

ABS combination valves

(Figure 3. ABS combination valves)


3) Wheel speed sensor

As shown in Figure 4 below, it is installed on the axle. It is generally electromagnetic, with permanent magnet in the middle and coil in the periphery. When the magnetic flux induced on the coil changes, the AC voltage induced on the coil is sent to the controller.

轮速传感器

ABS wheel speed sensors

(Figure 4. ABS wheel speed sensor)



4) Gear ring

As shown in Figure 5 below, the gear ring is made of soft magnetic material, which is installed on the wheel hub and rotated with the wheel.

齿圈

ABS gear rings

(Figure 5. ABS gear rings)



5) ABS warning lamps


6) Wiring harnesses and connectors


4. Technical standards of the ABS system



The technical standards of the semi-trailers ABS system shall be implemented in accordance with GB / T13594-2003(Anti-lock braking performance and test procedures for motor vehicles and trailers).


Compiled by  WONDEE Autoparts

2022-5-19
