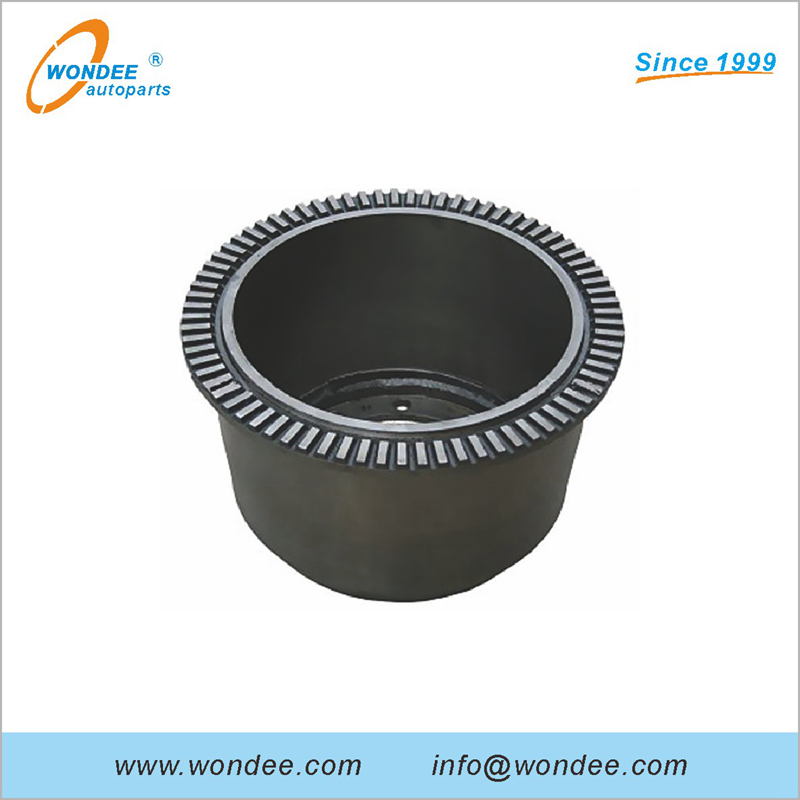

Heavy Duty OEM Casting Brake Drums for Semi Trailer and Truck Parts

20+ years of experiences (since 1999)
Implementing IATF 16949-2016
Implementing ISO 9001-2015
Quality testing by an independent laboratory
Warranty: 12 months since shipping date
Sales volume (tons): 20,000+ per year

Availability:

Application

WONDEE Brake drum application

The brake drum is generally made of a special type of cast iron that is heat-conductive and wear-resistant. It rotates with the wheel and axle. When a driver applies the brakes, the lining pushes radially against the inner surface of the drum, and the ensuing friction slows or stops rotation of the wheel and axle, and thus the vehicle. This friction generates substantial heat.

The brake drum is widely applied on axles of semi-trailers, full trailers, farm trailers, boat trailers and  all trucks.

Features

QC management systemImplementing IATF16949-2016
Services quality management systemImplementing ISO9001-2015
Product technical standardImplementing GB/T37336-2019
Raw materialHT250
Tensile strength of material≥ 255 MPa
Tolerance classes of mounting spigot hole≤ H9
Lateral run-out friction surface≤ 0.15 mm
Location face flatness≤ 0.05 mm
Friction surface roughness≤ 3.2 µm
Sales volume (tons)20,000+
Warranty12 months since shipping date


Comprehensive Info of Trailer Brake Drums:


Land area (square meters )25,000+
Sales volume (tons)20,000+
Number of equipments (sets)200+
Number of employees270
Number of engineers50+
Clients (overseas)100+
Overseas market30+ countries
Available certificatesCOC; PVOC; CIQ; SONCAP; BV; C/O; FORM E
Classification of brake drumsCommon brake drums: Single material brake drums & Bi-metal brake drums, Brake hub-drums.
Interchangeable brandsBPW, FUWA, MERCEDES BENZ, Volvo, SCANIA, RENAULT, DAF, MAN, HOWO, IVECO, SINO, KAESSB, KESSLER, SISU, NEOPLAN, DAEWOO, TATRA MAZ LIAZ KAROSA IKARUS, SAF, DHS, ROR, FRUEHAUF, GUNITE, WEBB, KIC, HINO, NISSAN, MITSUBISHI, FOSO, ISUZU, YORK, TRAILER DRUM, TRAILOR DRUM
Replacements3014210501, 3014210701, 3014210901, 3014211301, 3014230001,
3014230101, 3014230301, 3014230801, 3014230901, 3014231201, 3024230001,   3054210001, 3054210101, 3054210401, 3054230401, 3054230301, 3054230701, 3074230101, 3204230101, 3354210201, 3354210301, 3464210301, 3464230501,   3464230601, 3464230001, 3464230101, 3464231201, 3464230201, 3524210401,   3524210501,
3544210001, 3544210101, 3544210301, 3544210401, 3604210601,
3604210701, 3604230101, 3644210001, 3814230001, 3814230101,
3834230201, 3844210001, 3854230501, 3854230101, 3854230301, 3854230801,   3864210001, 3874210001, 3874210201, 6174230101, 6174230201, 6244210201,   6584210001, 6584210301, 6774210301, 6234210001, 0310667290, 0310677040,   0310677630, 0310667120,
0310677560, 0310677590, 0310677670, 0310677720, 0310677940,
0310679060, 0310667010, 0310667360, 0310667400, 0310667430,
0310667440, 0310667540, 0310667620, 0310677110, 0310677120,
0310677190, 0310677210, 0310677280, 0310677410, 0310677450,
0310677520, 0310677530, 0310677570, 0310546010, 0310546030,
0310546070, 0310546080, 0310546100, 0310546120, 0310546290,
0310590020, 0310590040, 0310590050, 0310977720, 0310687150,
0310967050, 0310967130, 0310967190, 0310967250, 0310967740,
0310967820, 0310977160, 0310977170, 0310977180, 0310977240,
0310987010, 0310990030, 0310990220, 0310990240, 0310990250, 1134817,   1590313, 1075305, 1075306, 1075307, 1599678, 1599679,
1577439, 1589429, 1584132, 1075308, 1075309, 1075310, 1075311,
1075312, 1599009, 1599010, 1599011, 1599012, 1599013, 1599014,
1599969, 1599970, 1599971, 1599972, 1599968, 1500537, 1590313,
324006, 324005, 1590146, 1605785, 3171743, 3171744, 3171745,

3171746, 3171747, 3171748, 311116, 352786, 356357, 366866, 366865, 362172, 6799011, 350976-7, 677213, 6779272, 35217-6,
352788-4, 3602.A, 3602.B, 3602.C, 3602.E, 3602.R, 3602.S, 3602.Q,
3602.S1, 3602.R1, 3602.H, 1414153, 1361331, 1333117, 1414152,
1334075, 1414435, 1385893, 147633, 175771, 157676, 159668, 208661, 277309,   285894, 285895, 277308, 285901, 277311, 277309,
293544, 293543, 297427, 175929, 297428, 305405, 305406, 305438,
307503, 320392, 342880, 360570, 360572, 360571, 360573, 360564,
360566, 360568, 360569, 360567, 368269, 392390, 392391, 395976,
116095, 176061, 249050, 5000737768, 5000716288, 5000792385,
5000792895, 5000203430, 5000737342, 5000737459, 5010136146,
5010136147, 5010136148, 5010135142, 5010098116, 5010098949,
5010216437, 5516017936, 5516031597, 5516017937, 5516017938
5516031348, 5516017939, 5516031595, 5600104967, 0191128, 0192371, 0194435,   0194456, 0194536, 0189923, 0189937, 0090500,
0094903, 0094904, 0094898, 0587310, 0117351, 0363342, 0360559,
0505221, 0365579, 0754397, 1232806, 0514276, 1233462, 1325270,
0161518, 0674287, 17938, 17939, 284620, 386563, 507650, 191173,
594224, 595225, 595222, 595226, 638160, 638161, 638167, 638165,
638170, 665795, 634905, AMPA498, 395247/0386964, 81501100101, 81501100102,   81501100104, 81501100107, 81501100108, 81501100118, 81501100144, 81501100147, 81501100134, 81501100213, 81501100214, 81501100081,
81501100219, 81501100223, 81501100226 ,81501100227,
81501100231, 81501100232, 81501103144, 81501109101,
81501109144, 815011032031, AZ9112340006, AZ9112440001, AZ9012340069, AZ9000340061, AZ9112440003, AZ9012340068,

AZ9112410009, AZ9000410066, 17017410009, 9151340201, 9181340201, AZ9515340082, 1135613,   2479853, 7163802, 7172019,
7172079, 7172329, 7172552, 02478953, 42003912, 02475817, 04459413,   86030594, 03427448, 7173107, 7180996, 7183046, 7910300, 42118426, 42118427,   86017937, 86017938, 86017939,
02479853, 42037813, 42003218, 010-2421949-11B, 015-2622112-32,
1072520150-06, 713650.1, 811256.1, 1463117200, 4462422131,
34531-00740, 51761-83420, 341-330-190, 1792411113-06, 1792520114-11,   814524.1, 814455.1, 1463117210, 33164098,
34531-00741, 51761-83411, 64221-3502070, 9397-3502070,
5336-3502070, 5440-3502070, 4370-3502070, 4370-3501070,
5336-3501070, 22-3502070.22, 118.00-3341.031, 6773501070A, 5440-3501070, 6430-3501070,   BE 639, 1064027800, 1064028000,
1064028001, 1064006002, 1064005706, 1064006509, 1064010401,
1064010410/D, 1064010801, 1064010901/C, 1064012800, 1064013000, 1064014900,   1064019700, 1064021000, 1064022000,
1064022100, 1064023600, 42431-87305, 1064023601, 1064023602,
1064026000, 1064026001, 1064026002, 1064026100, 1064027000,
1064027001, 1064027300, 1064027700, 1064027710, 1064000200A,
1064000200B, 21018963, 21018986, 21020038, 21021114,
21021114A, 21021164, 21220183, 21023064, AJA 595001,
AJA0489001, AJA0489002, AJA0490001, 21223852, 21021163,
21021284, 22222978, 22224179, 21020448, AJA 595001, AJA0489001, AJA0489002,   AJA0490001, AJB0465001, AJB0465002, AJB0026001, AJB0335001, 6105000A,   6094000L,
6502807M, 7000085S, 7000097Y, 17189, 10099, 1014079, A5121,
A1216C, A15597, A31468, A1561800, A3146800, MO06166,

MO68445, MO03176, 1022676, 21419, 244090, 31105, 31270, 32313, 2546B/C, 2566/X, 2568,   2577A, 2705, 2747A, 2908A, 2920X, 2974, 2983C, 2997D, 3022B, 3120, 3136A/B, 3141/B, 3158X, 3166, 3174, 3197, 3219, 3219A, 3576X, 3595, 3600A, 3600AX, 3618, 3674, 3676AX, 3687X, 3699, 3710X, 3721X/AX, 3744X, 3750B, 3753X, 3757, 3760BX, 3784, 3786X, 3800X, 3807, 3834, 3289X, 3295/A, 3383, 3402, 3412/X, 3413/R/RX, 3437, 3441X, 3467, 3475/X/RX, 3513/RX, 3543, 3557/A, 3851R/RX,
3852RX, 3854X/RX, 3855X/RX, 3856X/RX, 3857X/R/RX, 3889X,
3890X, 3891X, 3892X, 3893X, 8656, 56864B, 66812/D/F, 60876F,
61527B, 61528B, 61577F, 61591F, 61780F, 61788F, 61854F, 61950B, 61991B,   62027, 62117B, 62200F, 62240F, 62671F, 62997F,
63617, 63631F, 63635F, 64115B/D, 64117B/D, 64119B, 64481F,
65004A/B, 65152B, 65162B, 65166B, 65167B, 65169B, 65170B,
65266B, 65514B, 65541B, 65546B, 65548B, 65549B, 65551B,
65554B, 65555B, 65600B/C, 63637F, 63647F, 63680F, 63688F,
64003F/U/D, 64004F/B, 64004F, 64009B/D, 64017B, 64036B/D/F/U,
64038B/D/F/U, 64039B/D/U, 64040B/D, 64045B, 64046B/D,  64047B, 64048B/D/F/U, 64050B, 64051F/B,   64053B, 64059F,
64062B, 64073F, 64089B/U, 64112B/D/F, 64113B/D/F/U, 68732,
68765F, 68845F, 68891F, 68897F, 65651B, 65670B, 66250F,  66258F, 66353F, 66364B, 66366F, 66374B,   66661B, 66814F,
66816F, 66827B, 66852F, 66854F, 66864F/B, 66864B, 66865B,
66873F, 66875F, 66879F, 66884F, 66892F, 66893F, 66895B/F, 67518F, 68730F,   68918, 68942F, 68958F, 68981F/B, 97086,
555-01163, 555-01169, 555-20057B, 555-66258, 54201-018, 54214-018,   52230-10, 52890-13, 43512-1150, 43512-1193, 43512-1341,

43512-1342, 43512-1710,   43512-1720, 43512-2180, 43512-2230,
43512-2240, 43512-2310, 43512-2330, 43512-2421, 43512-2430,
43512-2450, 43512-2660, 43512-2830, 43512-2860, 43512-3020,
43512-3490, 43512-4011, 43512-4090, 43512-4100, 43512-4350,
2303-3502, 40206-90162, 40206-90166, 40206-90201, 40206-90204,
43207-90107, 43207-90106, 43207-90118, 43207-90119,
43207-90666, 40206-01G00, 40210-90129, 43403-61000,
40206-DT911, 43206-DT611, Fuso355, 42431-87306, 42431-35090
8-97034-799-0, 42431-87305, 8-97034-798-0, 12023-02203
MC807783, MC807781, MC828491, MC060504, MC838284,
MC838283, MC865370, MC308941, MC828489, MC828461,
MC828463, 1-42315314-0, 1-42315336-0, 1-42315365-1,
1-42315377-1, 6503540J, 6502781X, 6502796E, 6502807L, 6503335C, 27683, 21422, 18324, 86960, 18342F, 19324F, 790204F,
501774F, 786115, MC843461, MC865369, MC886503, MC828885,
MC804771, MC828411, MC891414, MC830506, MB060504, MK528536, FUSO 355, 1-42315220-1, 89703-47981, 14631-17210, 18323E, 449555, 27683X, 1018444,   1517000P, R2660505, 1064018500, 1064019100, 0310946060, 0310546080,   0310546200, 786224, 786225, 500731, 788801, 7861060
Brake sizes420×150 mm, 420×180 mm, 420×200 mm, 420×220 mm, 311×190 mm, etc.
ColorsRed, black, grey, blue, etc.
Standards implementedIATF 16949, ISO9001-2015, GB/T37336-2019
PaymentTT, LC, DP
Lead timeAbout 15~20 working days
MOQ1 unit


Parameters

Heavy Duty casting Brake Drums for Semi Trailer and truck Parts:

Brake drum (12)
Brake drum (3)

OEM No. Pilot Diameter Brake surface Diameter Brake Surface Width Overall Depth Bolt Circle Diameter Number of Bolt Holes Bolt Hole Size
8-94385-650-3 156mm 320mm 91mm 145mm 203mm 5 Φ21.0mm
8-97034-770-3 156mm 320mm 92mm 162mm 203mm 5 Φ21.0mm
8-97081-218-2 156mm 320mm 116mm 157mm 222.25mm
    175mm
6-Φ23.5mm
    3-M6×1
8-97081-219-2 156mm 320mm 116mm 157mm 222.25mm 6 Φ23.5mm
MK530799 215mm 370mm 160mm 188mm 285mm 8 Φ25.0mm

Remark: The semi trailers brake drums are supplied according to OEM numbers and drawings.

Production

Brake drum (1)

Brake drum (2)

WONDEE Brake drum casting process

WONDEE brake drum production lineWONDEE brake drum QC equipment (1)WONDEE brake drum QC equipment (2)

Packing


WONDEE brake drumsWONDEE brake drums packing and warehousing


Besides semi trailer brake drums, WONDEE also Supply different types of semi trailer components as below:
