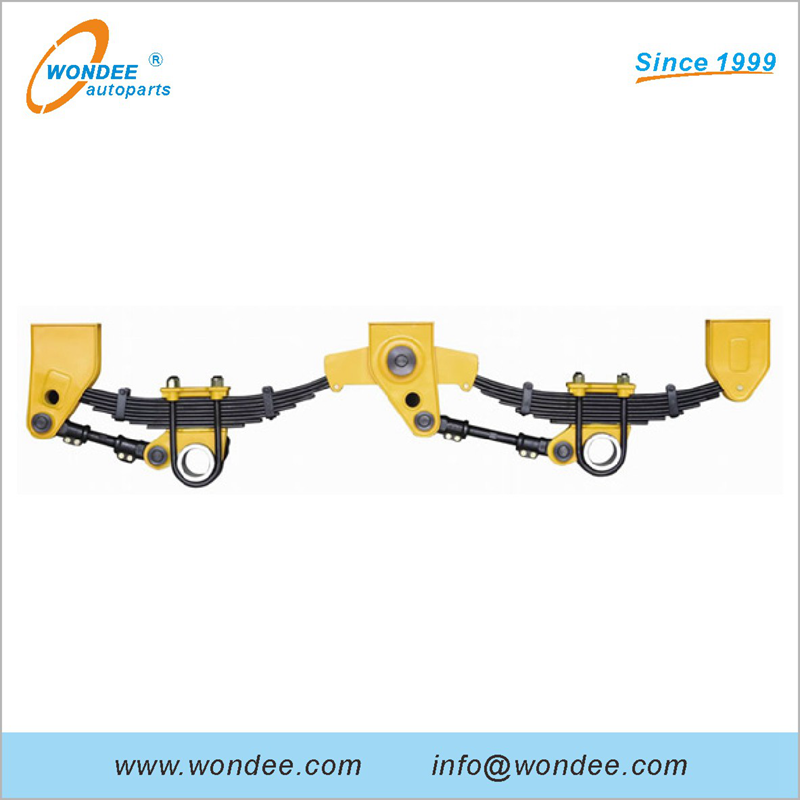

Tandem and Tri-axle Semi Trailer Mechanical Suspensions with Leaf Spring 80x13-10L for Indonesia Market

  • 20+ years production experience (since 1999)
  • Implementing IATF 16949-2016
  • Implementing ISO 9001-2015
  • Quality testing by an independent lab
  • Warranty: 18 months since shipping date
  • Sales volume (sets): 50,000+
  • 95%+ self-produced parts
  • Welding by automatic CNC robots/lines
  • Quality claim rate: under 0.1%
  • 98% on-time delivery
Availability:

Applications

Application of WONDEE suspension

A semi-trailer suspension is an important part connecting the traveling device and the frame of the semi-trailer.


All forces are all transmitted through the suspension system. And the suspension reduces the impact of harsh roads on the vehicle, plays a shock absorption effect, and improves the ride comfort of the vehicle.


Semi-trailer suspensions are widely applied to skeletal trailers, lowbed trailers, flatbed trailers, dump trailers, car transport trailers, oil tank trailers, van trailers, full trailers, wood transport trailers, agricultrucal vehicles, etc. Classification of suspension indlude German series suspensions, American series suspensions, bogie/boogie suspension series, air suspension series, rigid suspension series, YORK suspensions, ROR suspensions, HENRED suspensions, semi-trailer suspensions, trailer suspensions and agricultural series, etc.


For more about WONDEE Suspensions Project, please click:


suspension project

Features


QC management systemImplementing IATF 16949-2016
Services quality management systemImplementing ISO 9001-2015
Warranty18 months since shipping date
Quality testing passedAn independent lab in China
Raw material for suspensionsQ235 from China's TOP-3 steel mills can achieve a longer life under higher loads
Steel plate cutting byCNC Plasma Cutting Machines
Press forming by40-800 ton hydraulic press machines with hundreds of precision molds
Hanger welding byAutomatic CNC welding robots/lines with hundreds of precise fixture toolings
Smooth surface byShot-peening
Painting byAutomatic coating line
Producing leaf springs and casting parts byOurselves to ensure the lead time and quality are under control
Equalizer bushesUsing taper or greaseless powdered metal ones to be more durable
Arm bushesUsing natural rubber ones to be more durable
Adjustable arms screw byGalvanized anti-rust treatment
Sets of annual output50,000+
Overseas market30+ countries (Austraulia, Polland, Russia, Brazil, Mexico, Thailand, Malaysia, Singapore, Vietnam, The Philippines, Indonesia, Bolivia, Argentina, Chile, Peru, Guatemala, Panama, Egypt, South Africa, Nigeria, Tanzania, etc.)
Clients (overseas)100+
Land area (square meters)18,000+
Number of equipments (sets)200+
Employees120+
Engineers12+
Available certificatesCOC, PVOC, CIQ, SONCAP, C/O, FORM E, FORM A.


Comprehensive Info of Suspensions:

Suspension typesGerman series suspensions, American series suspensions, bogie/boogie suspension series, air suspension series, rigid suspension series, YORK suspensions, ROR suspensions, HENRED suspensions, semi-trailer suspensions, trailer suspensions and agricultural series, etc.
Interchangeable brands

BPW suspensions, FUWA suspension, YORK suspensions, ROR suspensions, HENRED suspensions.

ReplacementsFW880201A, FW880202A, FW880203A, FW880201B, FW880202B, FW880203B, FW880301A, FW880302A, FW880303A, FW880301B, FW880302B, FW880303B, FW860201A, FW860202A, FW860203A, FW860201B, FW860202B, FW860203B, FW860301A, FW860302A, FW860303A, FW860301B, FW860302B, FW860303B, FW86.2/1310/250/BQ6/9, FW86.2/1360/250/BQ6/9, FW86.3/1310/250/BQ6/9, FW86.3/1360/250/BQ6/9.
Quantity of installed axles including1-axle suspensions, 2-axle suspensions, 3-axle suspensions, 4-axle suspensions, etc.
Position of installed axles includingOverslung & underslung suspensions
Type of installed axle beams includingSquare & round axle beam suspensions
Hanger thickness6 mm, 8 mm, 10 mm
Equalizer thickness8 mm, 10 mm, 12 mm
Equalizer pin diameter50 mm, 60 mm, 70 mm
Axis (torque arm pin) diameter28 mm, 36 mm
Arm bushesNatural rubber, composite bushings, urethane rubber, used rubber, etc.
Leaf springs90x16x7 leaves, 90x16x9 leaves, 100x16x10 leaves, 100x12x12 leaves, 100x12x14 leaves, 100x14x12 leaves, 75x13x8 leaves, 75x13x9 leaves, 75x14x8 leaves, 75x14x9 leaves, etc.
ColorsRed, black, grey, blue, etc.
Optional parts/componentsFront hangers, rear hangers, center hangers, equalizers, equalizer pins, equalizer   bushes, brackets, axle seats, axises, bushes, leaf springs, U-bolts, bolts, fixed arms, adjustable arms, hanger spacers, reinforcing plates, reinforcing brackets for equalizers, etc.
Package* 30 sets~35 sets of suspensions with leaf springs in one 20 ft container;

* 60 sets~70 sets of suspensions without leaf spring in one 20 ft container;

* Mixed load with other trailer parts.

Standards implementedIATF 16949-2016, ISO 9001-2015.
PaymentTT, LC, DP.
Lead timeAbout 10~15 working days
MOQ1 set

Parameters

Mechanical Suspension with leaf spring 80x13-10L for Indonesia market:


WONDEE tandem suspension with leaf spring 80x13-10L-2WONDEE Tri-axle suspension with leaf spring 80x13-10L-2

American Type Suspension Series:

-WD88 Type Suspension Series

Mechanical suspension-WD88-02


WD88.02 Tandem (2-axle) Suspensions

Model Height of towing plate (mm) A1 (mm) A2 (mm) H (mm) Axle Loading (kg) Replacement
WDA2183908801 1180 441 433 183 13,000 * 2 FW880201A
WDA2223908801 1220 481 473 223 13,000 * 2 FW880202A
WDA2253908801 1250 511 503 253 13,000 * 2 FW880203A
WDA2164908801 1180 422 414 164 13,000 * 2 FW880201B
WDA2204908801 1220 462 454 204 13,000 * 2 FW880202B
WDA2234908801 1250 492 484 234 13,000 * 2 FW880203B



Mechanical suspension-WD88-03

WD88.03 Tri (3-axle) Suspensions

Model Height of towing plate (mm) A1 (mm) A2 (mm) A3 (mm) H (mm) Axle Loading (kg) Replacement
WDA3185908801 1180 457 448 435 185 13,000 * 3 FW880301A
WDA3225908801 1220 497 488 475 225 13,000 * 3 FW880302A
WDA3255908801 1250 527 518 505 255 13,000 * 3 FW880303A
WDA3166908801 1180 438 429 416 166 13,000 * 3 FW880301B
WDA3206908801 1220 478 469 456 206 13,000 * 3 FW880302B
WDA3236908801 1250 508 499 486 236 13,000 * 3 FW880303B

Note:

(1) Demension "A1, A2, A3": unladen

(2) Suitable for round/square axles

(3) Suggested leaf spring: 90×16×7 pcs


-WD86 Type Heavy Duty Suspension Series

Mechanical suspension-WD86-02

WD86.02 Tandem (2-axle) Suspensions

Model Height of towing plate (mm) A1 (mm) A2 (mm) H (mm) Axle Loading (kg) Replacement
WDA2183908601 1180 473 465 183 16,000 * 2 FW860201A
WDA2223908601 1220 513 505 223 16,000 * 2 FW860202A
WDA2253908601 1250 543 535 253 16,000 * 2 FW860203A
WDA2164908601 1180 454 446 164 16,000 * 2 FW860201B
WDA2204908601 1220 494 484 204 16,000 * 2 FW860202B
WDA2234908601 1250 526 518 234 16,000 * 2 FW860203B



Mechanical suspension-WD86-03

WD86.03 Tri (3-axle) Suspensions

Model Height of towing plate (mm) A1 (mm)

A2

(mm)

A3 (mm) H (mm) Axle Loading (kg) Replacement
WDA3183908601 1180 489 480 467 183 16,000 * 2 FW860301A
WDA3223908601 1220 529 520 507 223 16,000 * 2 FW860302A
WDA3253908601 1250 599 550 537 253 16,000 * 2 FW860303A
WDA3164908601 1180 470 461 448 164 16,000 * 2 FW860301B
WDA3204908601 1220 510 501 588 204 16,000 * 2 FW860302B
WDA3234908601 1250 540 531 518 234 16,000 * 2 FW860303B

Note:

(1) Demension "A1, A2, A3": unladen

(2) Suitable for round/square axles

(3) Suggested leaf spring: 90×16×9 pcs


-WD86 Type Heavy Duty Underslung Suspension Series

Mechanical suspension-WD86-02-underslung

WD86.21 Tandem (2-axle) Underslung Suspensions

Model L1 (mm) L2 (mm) L3 (mm) L4 (mm) Axle Loading (kg) Replacement
WDA2250908602 495 1310 1135 1165 16,000 * 2 FW86.2/1310/250/BQ6/9
WDA2250908603 495 1360 1160 1190 16,000 * 2 FW86.2/1360/250/BQ6/9


Mechanical suspension-WD86-03-underslung

WD86.31 Tandem (2-axle) Underslung Suspensions

Model L1 (mm) L2 (mm) L3 (mm) L4 (mm) Axle Loading (kg) Replacement
WDA3250908602 495 1310 1135 1165 16,000 * 2 FW86.3/1310/250/BQ6/9
WDA3250908603 495 1360 1160 1190 16,000 * 2 FW86.3/1360/250/BQ6/9

Note:

(1) Suitable for round/square axles

(2) Suggested leaf spring: 90×16×9 pcs


-WD68 Type Stamping Suspension Series

Mechanical suspension-WD68-02


WD68.21 AR5 Tandem (2-axle) Suspensions

Model A1 (mm) A2 (mm) Axle Loading (kg) Replacement
WDA2440756801 440 440 11,000 * 2 FW68.21HHAR05
WDA2415756801 415 415 11,000 * 2 FW68.21MMAR05
WDA2390756801 390 390 11,000 * 2 FW68.21LLAR05
WDA2440756802 440 415 11,000 * 2 FW68.21HMAR05
WDA2415756802 415 390 11,000 * 2 FW68.21MLAR05



Mechanical suspension-WD68-03


WD68.31 AR5 Tri (3-axle) Suspensions

Model A1 (mm) A2 (mm) A3 (mm) Axle Loading (kg) Replacement
WDA3440756801 440 440 440 16,000 * 2 FW68.31HHHAR05
WDA3415756801 415 415 415 16,000 * 2 FW68.31MMMAR05
WDA3390756801 390 390 390 16,000 * 2 FW68.31LLLAR05
WDA3440756802 440 415 390 16,000 * 2 FW68.21HMLAR05

Note:

(1) Demension "A1, A2, A3": unladen

(2) Suitable for round/square axles

(3) Suggested leaf spring: 75×13×8 pcs


-WD66 Type Lightweight Suspension Series

Mechanical suspension-WD66-02


WD66.22 AR5 Tandem (2-axle) Underslung Suspensions

Model A1 (mm) L1 (mm) L2 (mm) L3 (mm) Axle Loading (kg) Replacement
WDA2390756601 390 482.5 1245 1105 10,000 * 2 FW66.2/1245/390/AR5/3L
WDA2415756601 415 482.5 1245 1105 10,000 * 2 FW66.2/1245/390/AR5/3L
WDA2440756601 440 482.5 1245 1105 10,000 * 2 FW66.2/1245/390/AR5/3L

Note:

(1) Demension "A1, A2, A3": unladen

(2) Suitable for round/square axles

(3) Suggested leaf spring: 75×22×3 pcs


-WD20 Type Heavy Duty Suspension Series

Mechanical suspension-WD20-02

WD20.02 Tandem (2-axle) Suspensions

Model Height of towing plate (mm) A1 (mm) A2 (mm) H (mm) Axle Loading (kg) Replacement
WDA21831002001 1180 489 481 183 20,000 * 2 FW200201A
WDA22231002001 1220 529 521 223 20,000 * 2 FW200202A
WDA22531002001 1250 559 551 253 20,000 * 2 FW200203A
WDA21641002001 1180 470 462 164 20,000 * 2 FW200201B
WDA22041002001 1220 510 502 204 20,000 * 2 FW200202B
WDA22341002001 1250 540 532 234 20,000 * 2 FW200203B

Mechanical suspension-WD20-03


WD20.03 Tri (3-axle) Suspensions

Model Height of towing plate (mm) A1 (mm) A2 (mm) A3 (mm) H (mm) Axle Loading (kg) Replacement
WDA31831002001 1180 505 496 483 183 20,000 * 2 FW200301A
WDA32231002001 1220 545 536 523 223 20,000 * 2 FW200302A
WDA32531002001 1250 575 566 553 253 20,000 * 2 FW200303A
WDA31641002001 1180 486 477 464 164 20,000 * 2 FW200301B
WDA32041002001 1220 526 517 504 204 20,000 * 2 FW200302B
WDA32341002001 1250 556 547 534 234 20,000 * 2 FW200303B

Note:

(1) Demension "A1, A2, A3": unladen

(2) Suitable for round/square axles
(3) Suggested leaf spring: 100×16×10 pcs


German type Suspension Series (BPW type)

BPW 2-Axle type suspension


WDGB02 Tandem (2-axle) Suspensions

Model H (mm) A (mm) C (mm) D (mm) E (mm) Leaf spring
WDGB21551001201 155 490 1295 615 2610 100×12×12
WDGB21551001401 155 514 1295 615 2610 100×12×14


BPW 3-Axle type suspension


WDGB03 Tri (3-axle) Suspensions

Model H (mm) A (mm) C (mm) D (mm) E (mm) Leaf spring
WDGB31551001201 155 490 1295 615 3970 100×12×12
WDGB31551001401 155 514 1295 615 3970 100×12×14

Note:

(1) Demension "A": unladen

(2) Suitable for round/square axles

(3) Suggested leaf spring: 100×12×12 pcs, 100×14×12 pcs, 100×12×14 pcs


German type Suspension Series (SAF type)


SAF 2-axle suspension


WDGS02 Tandem (2-axle) Suspensions

Model H (mm) A (mm) C (mm) D (mm) E (mm) Leaf spring
WDGS21551001201 155 500 1295 615 2610 100×12×12
WDGS21551001401 155 524 1295 615 2610 100×12×14


SAF-3-axle suspension


WDGS03 Tri (3-axle) Suspensions

Model H (mm) A (mm) C (mm) D (mm) E (mm) Leaf spring
WDGS21551001201 155 500 1295 615 2610 100×12×12
WDGS21551001401 155 524 1295 615 2610 100×12×14

Note:

(1) Demension "A": unladen;Note:

(2) Suitable for round/square axles

(3) Suggested leaf spring: 100×12×12 pcs, 100×14×12 pcs, 100×12×14 pcs

Production

Workshops of WONDEE Autoparts semi trailer suspensions:

WONDEE Trailer suspension workshops

(Raw material workshops, Components workshops, Mechanical suspension processing workshops, Semi trailer suspensionAssembly workshops, Painting line)


Processes & equipment
of WONDEE Autoparts semi trailer suspensions:


WONDEE Trailer suspension processing

(1. Steel Plate Material→ 2. Steel Plate CNC  Automatic Cutting→ 3. Hangers punching→ 4. Hangers Forming→ 5. Hangers Welding→ 6. Sleeve(A & B) Welding→ 7. Shot Peening→ 8. Painting→ 9. Laser marking→ 10. Assembling→ 11. Packing→ 12. Warehousing)


Products and logistics of WONDEE Autoparts semi trailer suspensions:

WONDEE Trailer suspension products and warehousing

(Mechanical suspension final production, Suspension hangers, Components of semi trailer suspensions, Suspension warehousing, Suspension packing, trailer suspension container loading)


Other types of WONDEE Autoparts semi trailer suspensions:

WONDEE trailer suspension range (1)

(Germany BPW type mechanical suspension, Germany SAF type mechanical suspension, American FUWA type suspension with square beam, American FUWA underslung type suspension with square beam, American FUWA type suspension with round beam, American FUWA underslung type suspension with round beam)


Other types of WONDEE Autoparts semi trailer suspensions:

WONDEE trailer suspension range (2)

(YTE casting type suspension, ROR casting type suspension, Henred Fruehauf type suspension, Agricultural trailer suspension)

Components

Components & spare parts of WONDEE Autoparts semi trailer suspensions:

Components of WONDEE trailer suspension

(Font hangers, Middle hangers, Rear hangers, Supension equalizers, Equalizer pins, Leaf springs, Fix torques, Adjustable torques, U-bolts, etc.)


Besides trailer mechanical suspensions, WONDEE Autoparts also supply different types of semi trailer components as below:



Previous:
Next:

Headquarters

Xinhe Industrial Park, Xiamen, Fujian, China 361006

PRODUCTS

RESOURCES

COMPANY

HOT TAGS

Copyrignt @ 2021 XIAMEN WONDEE AUTOPARTS CO., LTD. All Rights Reserved | Friendly Links: www.wondeeauto.com | www.wondeetrucktek.com
