Trucking moves over 70% of freight in the United States, making it the backbone of goods transportation. While the truck provides the power, the trailer carries the cargo. Choosing the correct semi-trailer ensures safe delivery and efficient operations. Understanding each trailer type allows operators to select the right equipment for specific loads and projects.

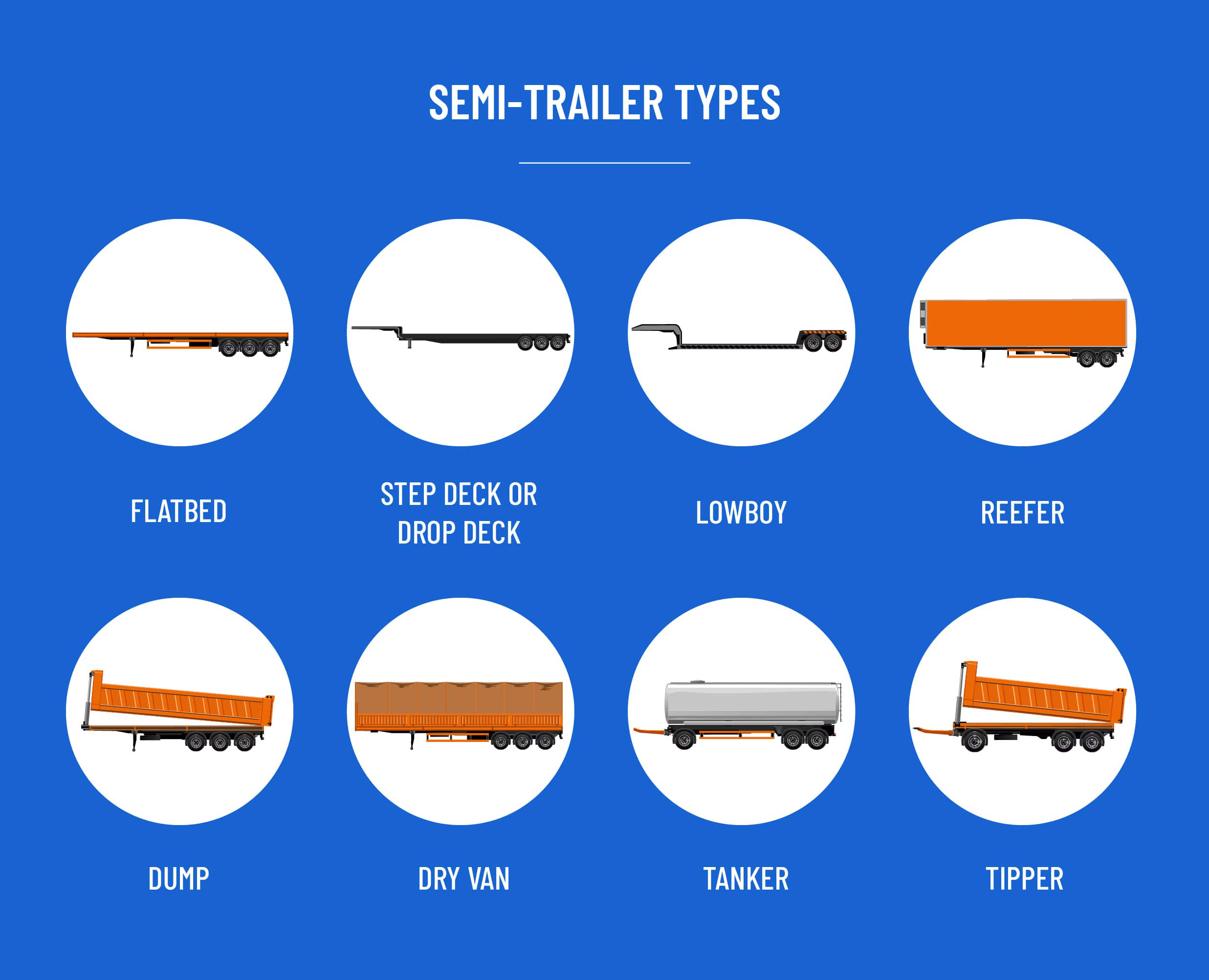

With numerous semi-trailer types available, each serves different purposes. Selecting a trailer compatible with your cargo dimensions and weight avoids delays, reduces operational risk, and improves overall efficiency. Here’s a detailed guide to the most common semi-trailer types, their applications, and legal load specifications.
Flatbed trailers provide unmatched versatility and are among the most widely used trailers. These trailers have a flat deck with no roof or sides, allowing loading from the top or sides. Their open design makes them ideal for oversized or unusually shaped cargo that requires crane or forklift loading.
Typical Cargo: Construction materials, heavy machinery, oversized items, lumber.
Legal Load Specifications: Maximum freight weight of 48,000 lbs., trailer length 48–53 ft., width 8.5 ft., maximum height 8.5 ft.
Flatbeds work well when cargo requires easy access and flexible loading arrangements. Operators must account for weather exposure since the open deck does not protect goods from rain, snow, or road debris.
Step deck trailers, also known as drop deck trailers, feature two deck levels: an upper deck above the tractor and a lower deck closer to the ground. The lower deck allows transport of taller cargo while staying within legal height limits.
Typical Cargo: Machinery taller than flatbed limits, construction equipment, oversized materials.
Legal Load Specifications: Maximum freight weight 48,000 lbs., length 48–53 ft., width 8.5 ft., height up to 10 ft.
Step deck trailers balance height flexibility with load capacity, making them suitable for construction and industrial shipments.
Lowboy trailers, or double drop trailers, feature two drops in deck height for extremely low clearance. This design accommodates very tall equipment without requiring special height permits. Adding extra axles increases load capacity, allowing safe transport of heavy construction machinery.
Typical Cargo: Bulldozers, excavators, backhoes, oversized machinery.
Legal Load Specifications: Weight 40,000–80,000 lbs., well length 24–29.6 ft., width 8.5 ft., height 11.5–12 ft., maximum overall height 14 ft.
Lowboys are essential for transporting heavy, high-profile equipment over roads with standard height regulations.
Reefer trailers, or refrigerated trailers, protect temperature-sensitive cargo through insulation and refrigeration. They maintain consistent temperatures for perishable goods, pharmaceuticals, and plants.
Typical Cargo: Produce, meat, dairy, pharmaceuticals, florals.
Legal Load Specifications: Weight 42,000–45,000 lbs., length 48–53 ft., width 8.2 ft., height 8 ft.
Reefers prevent spoilage and allow long-distance transport of sensitive goods, critical for food and pharmaceutical industries.
Dump trailers feature hydraulics to tilt the trailer bed for unloading heavy materials efficiently. Compared to dump trucks, these trailers offer customizable sizes, cost savings, and adaptability. Available in frameless aluminum or steel frame designs, they support varied cargo types.
Typical Cargo: Gravel, sand, dirt, stone, debris.
Legal Load Specifications: Length up to 45 ft., width 8.5 ft., height 13’6”.
Types:
End Dump: Tilts rearward, ideal for granular material but less stable on uneven ground.
Side Dump: Tilts sideways, providing greater stability and faster unloading.
Bottom Dump: Uses clam shell gates to unload in windrows; ideal for certain granular materials.
Dump trailers excel in construction and landscaping, offering efficient material handling and quick unloading.
Dry vans, or box trailers, provide fully enclosed storage for non-perishable goods. Protection from weather and road debris ensures cargo integrity, and loading typically occurs at the rear, often using loading docks.
Typical Cargo: Clothing, non-perishable foods, household goods, building materials.
Legal Load Specifications: Weight 42,000–45,000 lbs., length 48–53 ft., width 8.2 ft., height 8 ft.
Dry vans are suitable for general freight where cargo protection is essential but refrigeration is not required.
Tanker trailers transport liquids and powders. Cylindrical construction maintains pressure control, prevents surging, and simplifies cleaning. Materials include aluminum or stainless steel, depending on the cargo type.
Typical Cargo: Fuel, chemicals, beverages, asphalt, dry food.
Legal Load Specifications: Gross weight 80,000 lbs., length 48–53 ft., width 8.5 ft., height 13.5 ft.
Variants:
Asphalt Tankers: Provide heating for liquid asphalt.
Petroleum Tankers: Feature multiple compartments and internal baffles to control fuel surge.
Pneumatic Tankers: Transport dry bulk with air pressure for unloading.
Stainless Tankers: Protect highly pure or corrosive materials.
Tanker trailers meet stringent safety and hygiene standards required for liquid and bulk transport.
Tipper trailers use hydraulics to raise and tilt, allowing gravity-assisted unloading. They are ideal for heavy debris and construction materials, supporting fast and efficient unloading cycles.
Typical Cargo: Bricks, gravel, construction debris, agricultural materials.
Legal Load Specifications: Weight 42,000–45,000 lbs., length 43–58 ft., width 8.5 ft., height 8 ft.
Tippers are essential for projects requiring frequent unloading of heavy or loose materials.
Schnabel trailers handle extremely heavy and oversized cargo, such as industrial machinery or wind turbine components. They feature an articulated design with multiple axles and a boom extending over the front, enabling transport of loads exceeding 100 ft and hundreds of tons.
Typical Cargo: Bridge beams, wind turbine sections, refinery columns.
Capacity: 500–1,000 tons depending on configuration.
These specialized trailers solve unique heavy-haul challenges and enable transport of cargo that conventional trailers cannot accommodate.
Choosing a trailer depends on cargo type, weight, dimensions, and regulatory requirements. Flatbeds suit oversized loads, reefers handle perishables, lowboys transport tall machinery, and tankers carry liquids or powders. Always consider legal weight limits, maximum dimensions, and operational requirements.
For businesses seeking reliable trailer components or semi-trailer equipment, WONDEE Autoparts supplies semi trailers, axles, suspensions, and other essential parts. With over 20 years of experience, WONDEE ensures durable, high-quality components that support safe and efficient trailer operations.
Investing in the proper semi-trailer and supporting components ensures operational efficiency, safety, and regulatory compliance. Selecting the right trailer type streamlines shipping, reduces costs, and accommodates any cargo type, from heavy machinery to delicate perishable goods.
