Heavy hauling plays a crucial role in the trucking industry and requires specialized equipment to transport oversized or overweight freight safely. Selecting the right heavy haul trailer ensures cargo stability, legal compliance, and operational efficiency.
Heavy haul trailers handle freight that exceeds standard size and weight limits. Oversized, overweight, or super loads often require multi-axle trailers for safe transport. Each trailer’s axle configuration determines load capacity, making it essential to match the trailer to the freight specifications. Legal limits vary by state, so proper planning and trailer selection are critical for a smooth operation.
Heavy haul trailers provide extra support through multiple axles and reinforced frames. They allow trucks to carry loads such as turbines, agricultural equipment, cranes, timber, boilers, piping, planes, wind energy equipment, and mining machinery. The trailers’ design ensures weight distributes evenly across axles, minimizing road damage and vehicle strain. Understanding trailer types, load limits, and legal regulations is key to safe transport.
Transporting oversized loads requires careful attention to legal requirements. Drivers must obtain oversize permits and follow state-specific regulations regarding weight, width, and height. Route planning prevents issues like low bridges, sharp turns, or restricted zones. Some jurisdictions mandate pilot or escort vehicles, which provide additional safety by guiding the load and alerting other drivers.
Other essential considerations include:
Federal bridge weight limits
Truck size and weight provisions
Federal size regulations for commercial motor vehicles
Maximum weights enforced by the Federal Highway Administration (FHWA)
Partnering with a logistics company experienced in heavy hauling can help coordinate permits, pilot vehicles, and equipment setup.
Extendable flatbed trailers are among the most versatile heavy haul trailers. Standard flatbeds measure 48 to 53 feet in length and carry up to 14,000 pounds. Stretch flatbeds extend to 80 feet and accommodate longer freight such as lumber or pipes while increasing weight capacity to approximately 18,000 pounds.
Extendable flatbeds provide flexibility in handling oversized loads without exceeding legal limits. Operators can adjust trailer length according to freight dimensions while maintaining compliance with state-specific height and weight restrictions. These trailers remain popular due to their adaptability and ease of use.
Key Benefits:
Carry extra-long freight safely
Adjust trailer length for oversized loads
Distribute weight across multiple axles
Browse Semi Trailers & Components to find extendable flatbed options.
Double drop deck trailers, also called lowboy trailers, allow transport of tall freight exceeding the 8’6” legal height limit. The design features a well in the center and raised decks at both ends. Extendable double drop decks provide additional length to handle larger equipment, ensuring compliance with height and axle load requirements.
These trailers are common for construction and industrial machinery, such as excavators, cranes, or heavy fabrication equipment. Operators can adjust the length to accommodate specific freight, while multiple axles support increased weight.
Advantages:
Haul tall and heavy freight efficiently
Adjustable length for oversized loads
Proper axle configuration supports legal weight limits
Removable gooseneck trailers excel at loading heavy equipment. Their detachable front allows the trailer to lower to ground level, enabling machinery to drive directly onto the deck. Standard RGNs accommodate most heavy machinery, while extendable RGNs handle longer and heavier loads. These trailers often include drop deck or double drop deck configurations with multiple axles for weight distribution.
Benefits:
Easy loading and unloading of heavy equipment
Accommodates long and heavy loads
Multiple axles increase stability and capacity
Step deck trailers, sometimes called drop deck trailers, provide an efficient solution for hauling tall freight within legal height limits. The lower deck carries large equipment, while the upper deck accommodates smaller cargo. Extendable step decks increase overall length, and additional axles allow for higher weight capacity.
Specifications:
| Trailer Type | Lower Deck Length | Width | Load Height | Empty Weight |
|---|---|---|---|---|
| Standard Step Deck | 37’–43’ | 8’6” | 10’ | 14,000–16,000 lbs. |
| 3-Axle Extendable Step Deck | 37’–65’ | 8’6” | 10’ | 20,000 lbs. |
| 6-Axle Extendable Step Deck | 37’–65’ | 8’6” | 10’ | 36,000 lbs. |
Step decks offer versatility for equipment that exceeds height restrictions while maintaining safe load distribution. Ramps can be added to facilitate loading and unloading of machinery.
Key Advantages:
Carry tall and heavy equipment safely
Adjustable deck configuration
Distribute load across multiple axles for stability
Choosing the correct heavy haul trailer depends on cargo size, weight, and legal requirements. Extendable flatbeds suit long and narrow freight, while lowboys handle tall machinery. RGNs provide convenient loading for wheeled equipment, and step decks offer flexible height and length configurations. Understanding each trailer type ensures safer, more efficient operations and compliance with regulations.

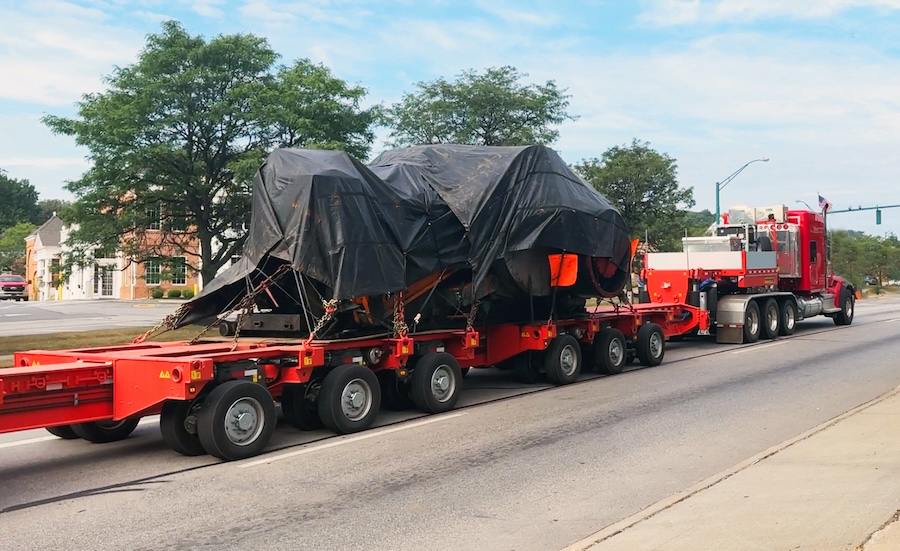

Heavy haul trailers rely on multi-axle setups to distribute weight and comply with state regulations. More axles increase load capacity and enhance stability. For example, trailers may have 5, 6, 7, 8, 10, 13, or even 19 axles depending on cargo requirements. Custom axle configurations can also be designed to meet unique freight demands.
Heavy haul trailers transport a wide range of oversized loads:
Turbines and wind energy components
Agricultural equipment and machinery
Homes and modular buildings
Cranes and construction equipment
Timber and steel products
Boilers, piping, and industrial equipment
Mining machinery and excavation equipment
Boats and aircraft
Proper trailer selection, load distribution, and axle configuration prevent damage to cargo and minimize risks on the road.
Legal compliance ensures safe and efficient heavy hauling. Operators must adhere to federal and state regulations, including bridge weight limits and maximum dimensions. Route planning is essential to avoid obstacles, and pilot vehicles may be required for certain shipments. Safety and compliance reduce liability while protecting cargo and public roadways.
