2-axle 3-axle 40 Feet

Availability:

Product Description

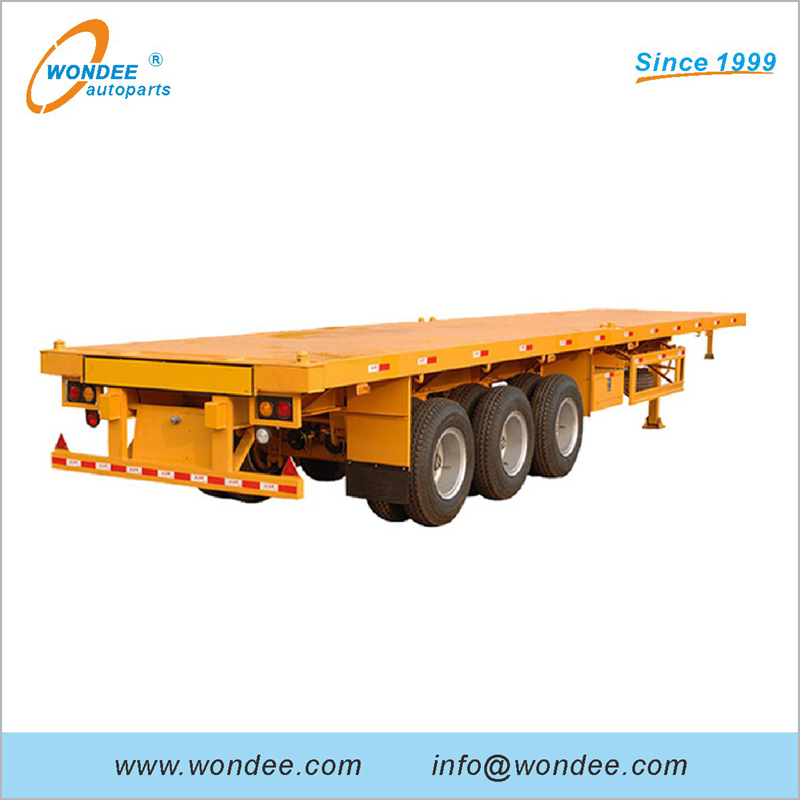

2-axle 3-axle 40 feet Flatbed semi trailer for container transportation


flatbed semi trailer (1)flatbed semi trailer (2)


WONDEE 40 feet tri-axle flatbed semi trailers Dimension:

Tare Weight:

7800 kg

Trailer Payload:

40000 kg

Total   Weight:

47800   kg

Overall   Length:

12400   mm

Overall   Width:

2480   mm

Overall   Height:

1575   mm

Wheel   track:

1840   mm

Wheelbase:

7450mm+1310mm+1310mm

WONDEE   40 feet 3-axle flatbed semi trailers Specification:

Main   Frame:

Heavy duty and extra durability   designed; Opting for high tensile steel Q345B, welding by automatic   Submerged-Arc processes

 Beam Size:

500mm Height “I” beam, Top   Flange 14mm, width 140mm; Middle Flange 6mm; Bottom Flange 16mm, width 140mm

Floor

Steel   sheet 3mm thickness

Axle:

Three   units WONDEE Brand 13T, 16T, 20T Axle, BPW and FUWA brand axle   are available

Suspension:

3-axle   mechanical suspension, Germany   Type / America Type
  Air suspension: WONDEE brand / BPW brand or   FUWA Brand according to request.

Leaf   Spring:

Six sets   of reliable WONDEE brand leaf spring, spring size with 90x16mm or 100x12mm .

King Pin:

one unit   of 3.5" bolt-in / Welded kingpin, standard, JOST type   2.0 inch (50mm) / 3.5 inch (90mm)

Landing   Gear:

Two-speed,   manual operation, heavy duty WONDEE Brand linked landing gear, JOST / FUWA 28T landing leg or according to   request.

Wheel   Rim:

12 units   of 8.25*22.5 / 9.00*22.5 tubeless steel wheel rim

Tire:

12 units   tire, sizes 11.00R20,   12.00R20,12R22.5, 385/65R22.5
  Triangle, Chengshan, Doublestar, Linglong   brand.

Twist   Lock:

Twelve units.   four units are fasten mode, eight units are up-down mode, of ISO twist lock   for 2x20ft or1x40ft container, central locks can be laid down.

Spare Wheel Carrier

One set of spare wheel carrier including a riser.

Pneumatic   Braking System:

Two   units of WABCO RE 6 relay valve; four units of T30/30 spring brake chamber;   two units T30 brake chamber, two units of reliable local brand 40L air tank;   two units of reliable local brand standard coppery air-connector.

Electrical   System:

One unit   of JAEGER POWAY, 24V 7-pin ISO 1185 socket; two sets of reliable, local brand   standard rear light, turn light, rear reflector, side light, side reflector   etc. One set of WONDEE (brand) 6-core standard Cable.

Painting:

Sand   blasting before painting; one coats of primer, anti-corrosion; two coat of   finish painting; Color advised by client.

Accessory:

One toolbox   with a set of standard trailer tool.

Packing   and shipping:

1. Cut   the rear part, two sets in one 40ft container ;
  2. No-cutting , two sets in one 45ft container .

Lead   time:

15~25 days   after deposit received.



 WONDEE flat bed semi trailer Photos :

flatbed semi trailer (3)Semi trailer (6)


WONDEE semi trailers loading methods:

Semi trailer (9)

WONDEE flat bed Semi Trailer Production Line:

Semi trailer (5)

WONDEE flat bed Semi trailer workshop photos:

Semi trailer (8)

 WONDEE 3-axle flatbed Semi Trailer Features:



 1. Apply to the transport loose cargo light, soft, with a low center of gravity and light weight, the quality of the utilization factor, carrying capacity and other characteristics

 2. Overall assembly and disassembly convenient, can be more than one car, van, car warehouse gate, tailgate car at the same time.

 3. Innovative design, tailored to local transport environment analysis on the basis of full understanding of, learn from the advanced design concept, many innovative.

 4. Advanced means of production technology and perfect testing equipment to protect the the product overall structure is reasonable, reliable performance.

 5. Frame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.
6. Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle.
7. Full braking and electrical systems at home and abroad in accordance with ISO standard, optional ABS system, braking, lighting is absolutely safe and reliable.
8. Frame overall spray primer treatment, paint spraying fine surface quality of maritime anti-corrosion standards.

9. Products fully comply with relevant national standard GB1589, GB/T6420, at the same time to meet the individual needs of customers.

Semi trailer (7)flatbed semi trailer (4)

WONDEE supply various kinds of Semi-Trailers :

WONDEE other type semi trailer



 In addition to supplying different types of semi-trailers, WONDEE also Supply different types of semi trailer components as below:
