When restoring or upgrading the suspension of a classic truck like the 1952 Ford F-1, striking the right balance between ride comfort and drivability is key. With countless rear suspension options on the market—ranging from factory-style replacements to coilover four-link conversions—choosing the right setup ultimately depends on your truck’s purpose and your personal preferences.
For our F-1 project, the goal was clear: build a street-friendly cruiser with improved ride quality and cornering confidence, without straying too far from the truck’s traditional layout. That meant retaining the factory-style parallel leaf spring design, but upgrading to a more modern solution.
The factory Ford leaf springs, after more than 65 years of service, were well past their prime. Seeking a refined ride and better handling characteristics, we turned to Total Cost Involved (TCI) Engineering, a company known for its high-quality suspension systems for classic vehicles.
Rather than recommend a typical multi-leaf semi-elliptical setup, TCI suggested something far more advanced: their parabolic leaf spring system. This modern twist on an old technology surprised us in all the right ways.
Unlike traditional multi-leaf springs—often made up of four to six stacked steel leaves with a consistent arc—parabolic springs feature only one or two tapered leaves shaped into a true parabola. This design offers several key benefits:
Reduced Weight: Up to 28% lighter than traditional leaf packs
Improved Comfort: Less internal friction means a smoother, more compliant ride
Better Suspension Articulation: Each leaf moves more independently, enhancing response over uneven surfaces
Modern Handling with Classic Simplicity: Retains the familiar form and bolt-on design of original leaf spring setups
Mated with a quality set of gas-charged shocks, the parabolic system delivers a dramatic improvement in ride quality without sacrificing stability.
Though the parabolic leaf setup alone offers excellent ride refinement, we wanted a bit more control through corners—especially considering the taller cab height of the F-1. To combat body roll and improve lateral stability, we also opted to install a TCI Engineering rear sway bar.
Designed with an integrated crossmember, the sway bar not only limits chassis lean in turns but also reinforces the ladder-style frame, helping reduce flex under load.

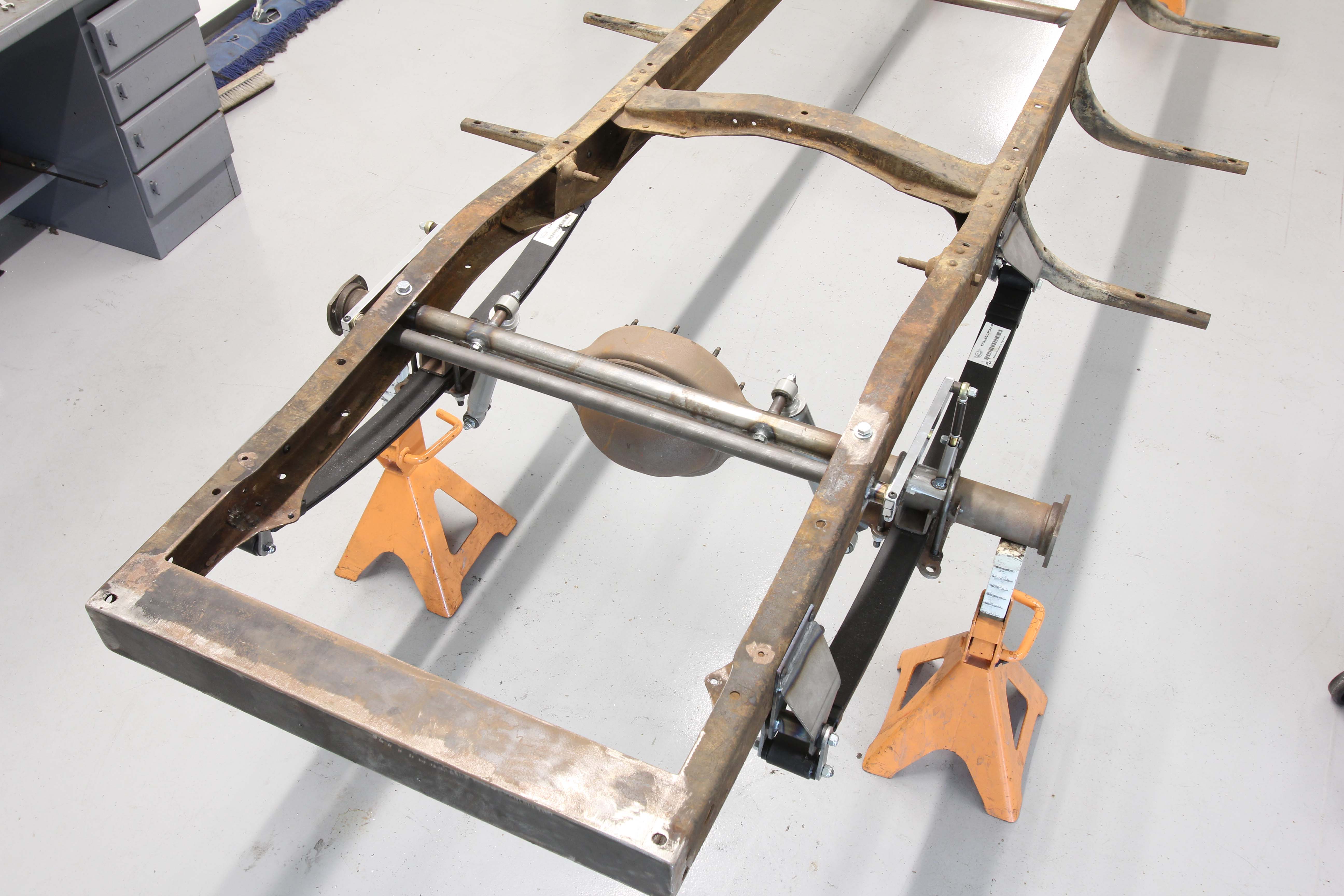

One of the standout features of TCI’s parabolic kit is its bolt-on design. The new leaf spring brackets align with existing holes in the frame once the factory rivets and original spring mounts are removed. There’s no welding required for the spring setup, making it an ideal choice for DIY builders or shops looking to save time during install.
The sway bar does require minor welding, but it remains an optional upgrade and is not essential for those sticking to a pure leaf spring configuration.
While aggressive, high-performance suspension setups have their place, not every classic truck needs a track-ready four-link with coilovers and complex geometry. For those who want to preserve the essence of their vehicle while dramatically improving ride quality and handling, parabolic leaf springs provide the perfect middle ground.
Whether you're restoring a Ford F-series, a classic Chevy pickup, or even something more obscure like an International Harvester, companies like TCI Engineering are redefining what’s possible with traditional suspension formats.
For builders who want to retain simplicity while embracing modern comfort and control, a parabolic leaf spring suspension is an excellent solution. If you're considering a suspension upgrade for your Ford F-1 or similar leaf-sprung vehicle, visit TCI Engineering’s website to explore their bolt-on kits.
