3-axle 16.5 M Lowbed semi trailer( Work platform 12M length )
WONDEE 16.5M tri-axle Lowbed semi trailers Dimension: |
Tare Weight | 13000kg |
Payload | 55000kg |
Overall Length | 16500 mm |
Overall Width | 3000 mm |
Overall Height | 3750 mm |
Wheel track | 2180mm |
Wheelbase | 11500mm+1310mm+1310mm |
WONDEE 16.5m 3-axle lowbed semi trailers Specification: |
Main Frame: | Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welding by automatic Submerged-Arc processes |
Beam Size: | 500mm Height “I” beam, Top Flange 14mm, width 140mm; Middle Flange 6mm; Bottom Flange 16mm, width 140mm |
Floor | Steel sheet 4mm thickness |
Axle: | Three units WONDEE Brand 13T, 16T, 20T Axle, BPW and FUWA brand axle are available |
Suspension: | 3-axle mechanical suspension, Germany Type / America Type
Air suspension: WONDEE brand / BPW brand or FUWA Brand according to request. |
Leaf Spring: | Six sets of reliable WONDEE brand leaf spring, spring size with 90x16mm or 100x12mm . |
King Pin: | one unit of 3.5" bolt-in / Welded kingpin, standard, JOST type 2.0 inch (50mm) / 3.5 inch (90mm) |
Landing Gear: | Two-speed, manual operation, heavy duty WONDEE Brand linked landing gear, JOST / FUWA 28T landing leg or according to request. |
Wheel Rim: | 12 units of 8.25*22.5 / 9.00*22.5 tubeless steel wheel rim |
Tire: | 12 units tire, sizes 11.00R20, 12.00R20,12R22.5, 385/65R22.5
Triangle, Chengshan, Doublestar, Linglong brand. |
Twist Lock: | Non |
Spare Wheel Carrier | Non |
Pneumatic Braking System: | Two units of WABCO RE 6 relay valve; four units of T30/30 spring brake chamber; two units T30 brake chamber, two units of reliable local brand 45L air tank; two units of reliable local brand standard coppery air-connector. |
Electrical System: | One unit of JAEGER POWAY, 24V 7-pin ISO 1185 socket; two sets of reliable, local brand standard rear light, turn light, rear reflector, side light, side reflector etc. One set of WONDEE (brand) 7-core standard Cable. |
Painting: | Sand blasting before painting; one coats of primer, anti-corrosion; two coat of finish painting; Color advised by client. |
Accessory: | One toolbox with a set of standard trailer tool. |
Packing and shipping: | 1. container ; |
Lead time: | 15~25 days after deposit received. |

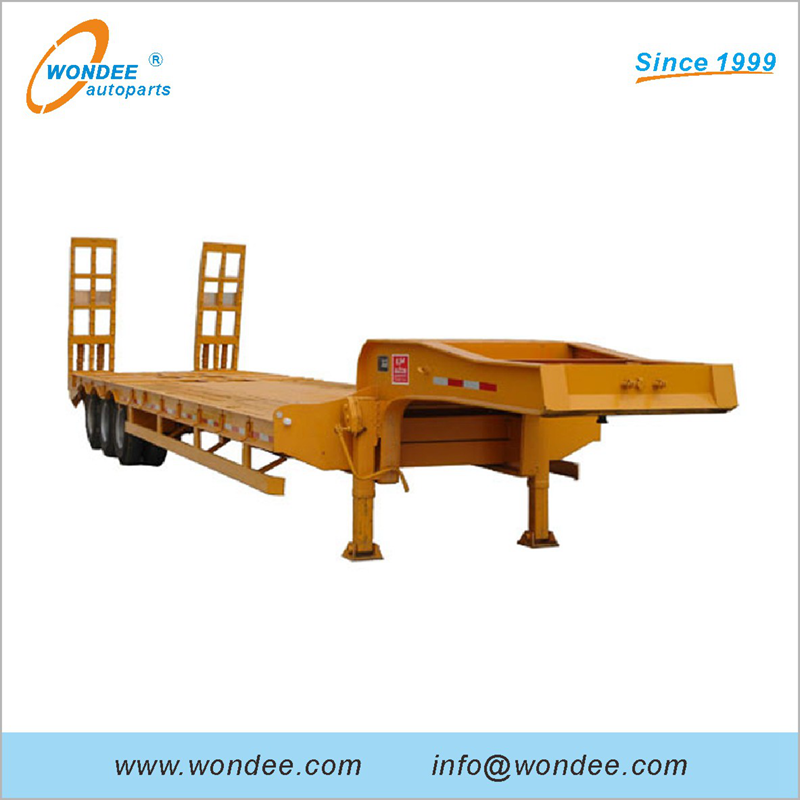

WONDEE Low bed semi trailer Photos :
WONDEE semi trailers loading methods:
WONDEE Lowbed Semi Trailer Production Line:
WONDEE Lowbed Semi trailer workshop photos:
WONDEE 3-axle 16.5M lowbed Semi Trailer Features:
1. Apply to the transport loose cargo light, soft, with a low center of gravity and light weight, the quality of the utilization factor, carrying capacity and other characteristics
2. Overall assembly and disassembly convenient, can be more than one car, van, car warehouse gate, tailgate car at the same time.
3. Innovative design, tailored to local transport environment analysis on the basis of full understanding of, learn from the advanced design concept, many innovative.
4. Advanced means of production technology and perfect testing equipment to protect the the product overall structure is reasonable, reliable performance.
5. Frame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.
6. Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle.
7. Full braking and electrical systems at home and abroad in accordance with ISO standard, optional ABS system, braking, lighting is absolutely safe and reliable.
8. Frame overall spray primer treatment, paint spraying fine surface quality of maritime anti-corrosion standards.
9. Products fully comply with relevant national standard GB1589, GB/T6420, at the same time to meet the individual needs of customers.
